Streamline Laser (SL)
Structured Lighting Solutions

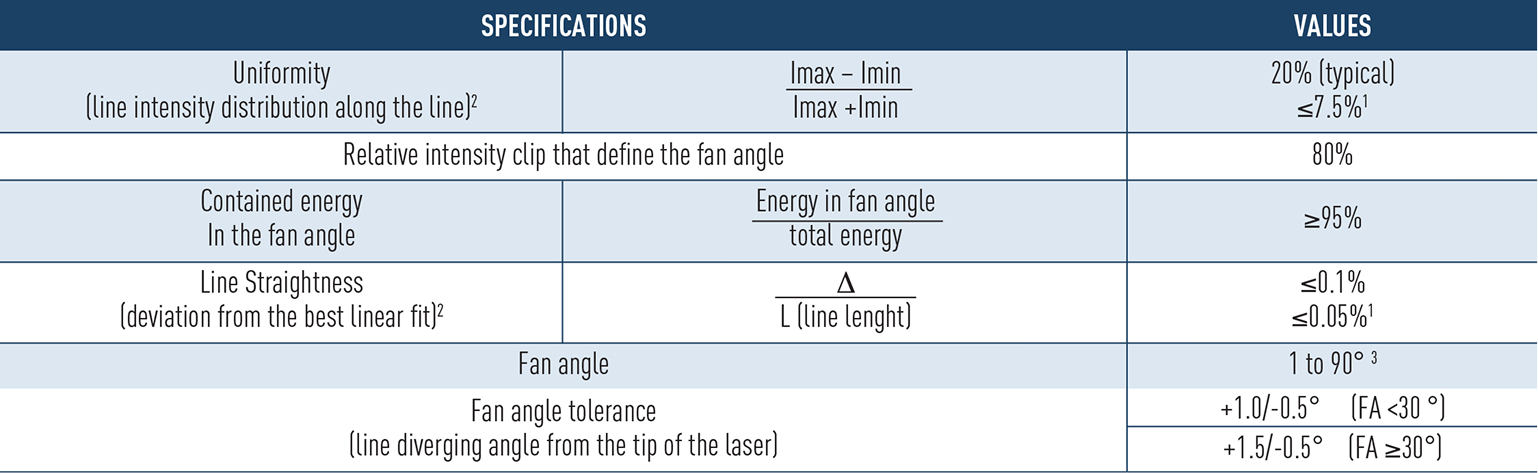

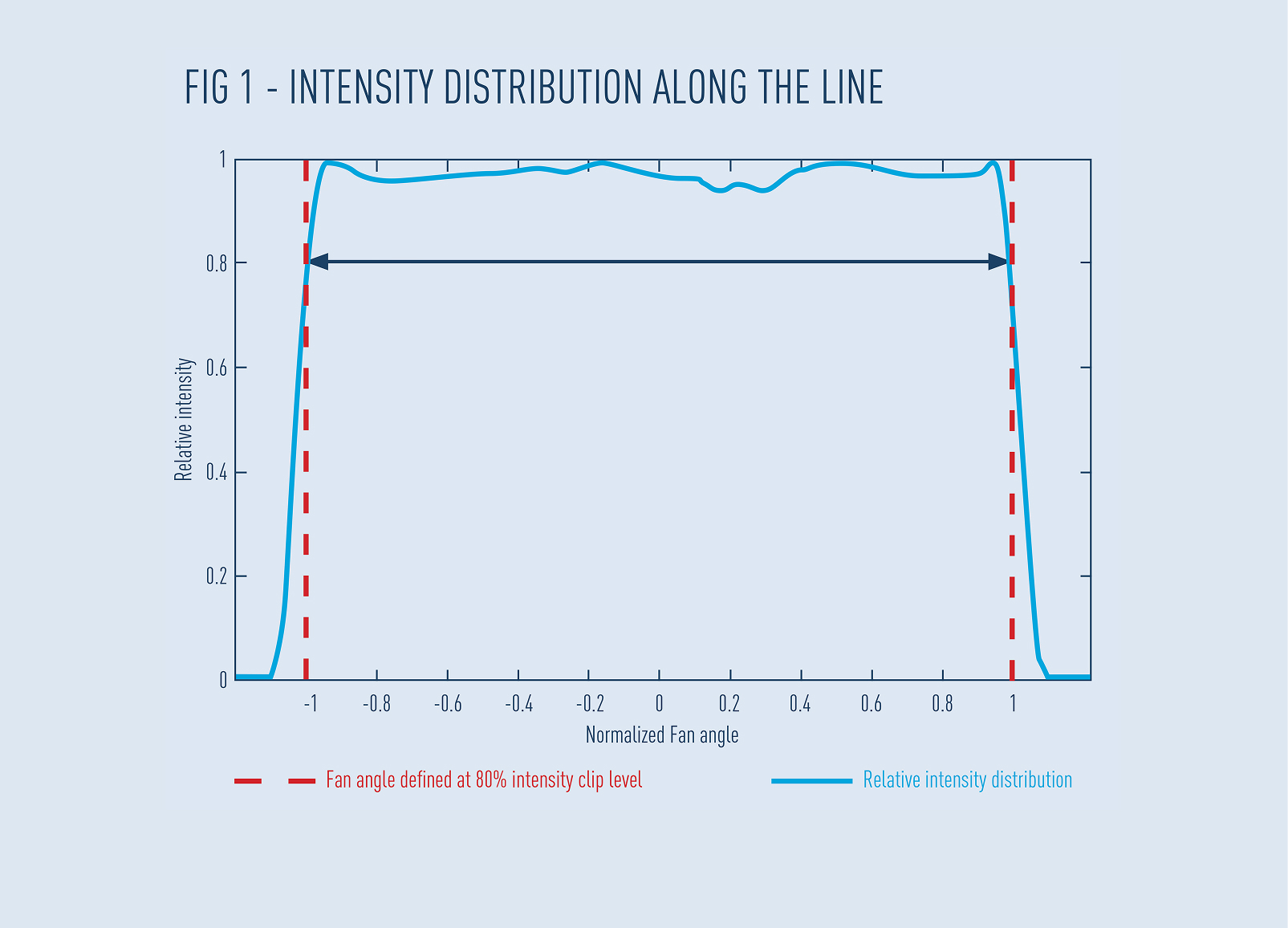

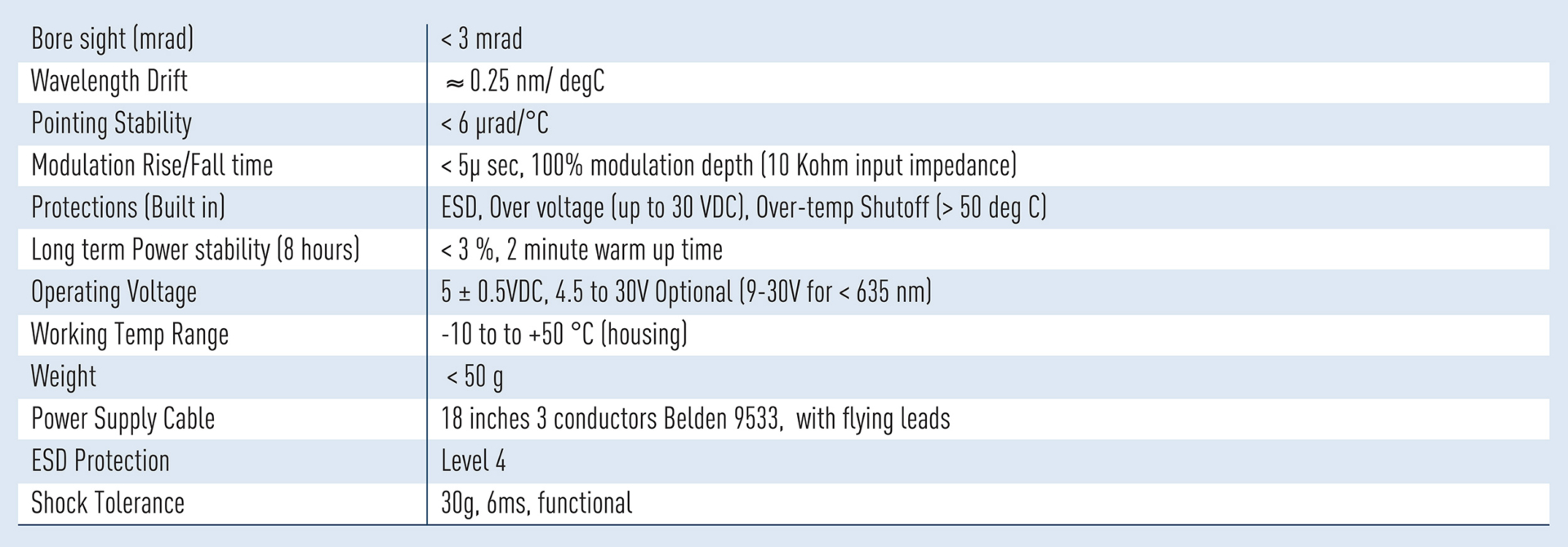

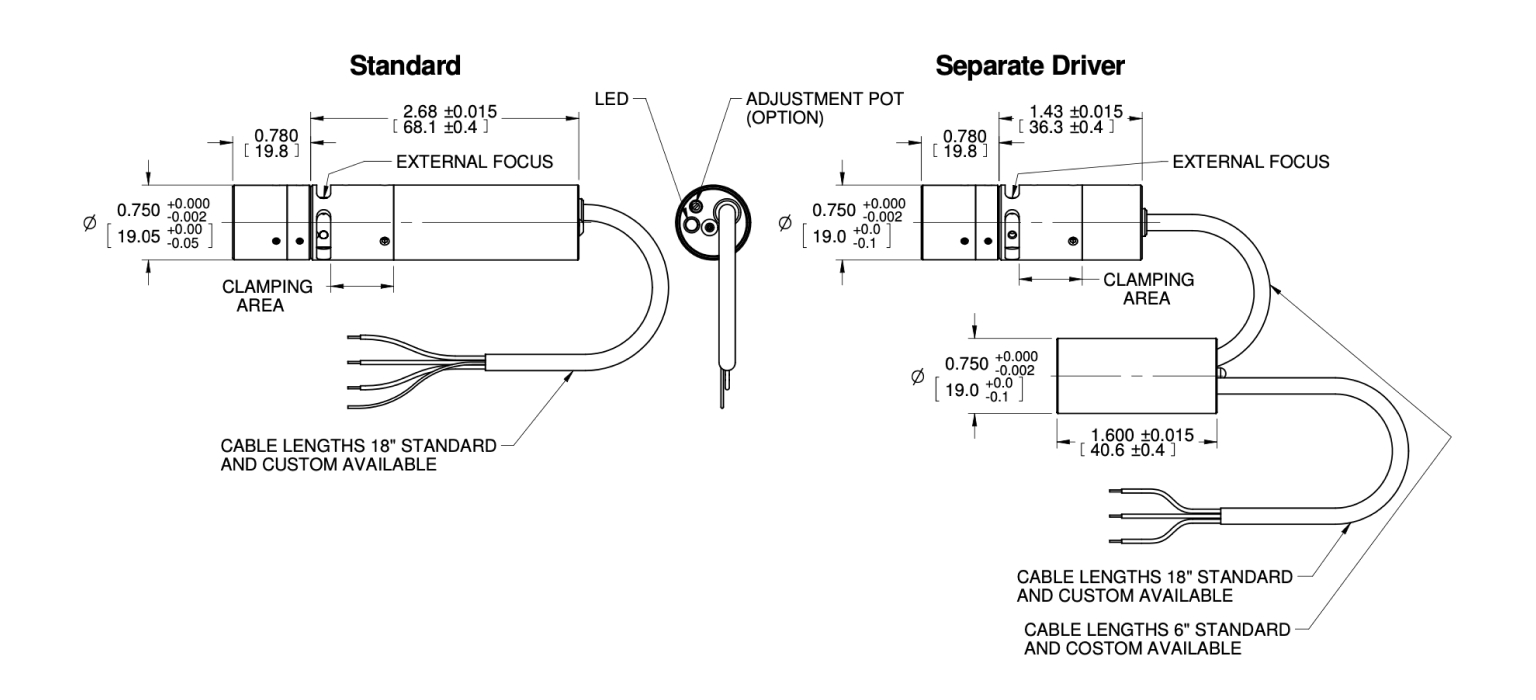

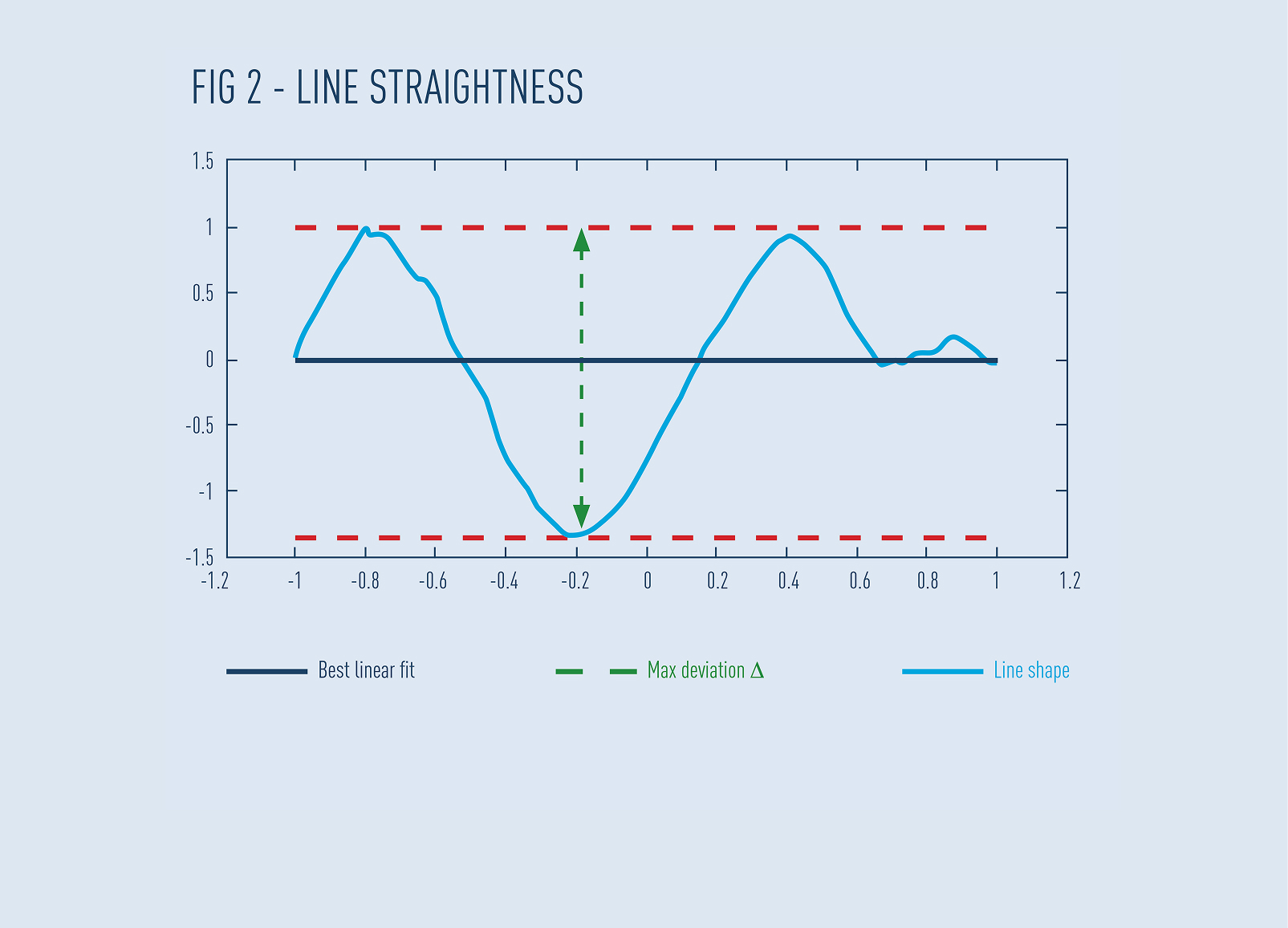

High performance, high reliability, and superior beam shaping capabilities in a self contained laser module for 3D structured light applications.
- Superior beam shaping (single or multiline)
- Externally focusable
- High Pointing and Focus stability
- ESD, Overvoltage & Over temperature protected
- Up to 2 year warranty
- 3D Machine Vision
- Industrial Inspection
- Bio-Medical
- Structured lighting
Laser Diode Models and Focusing Options

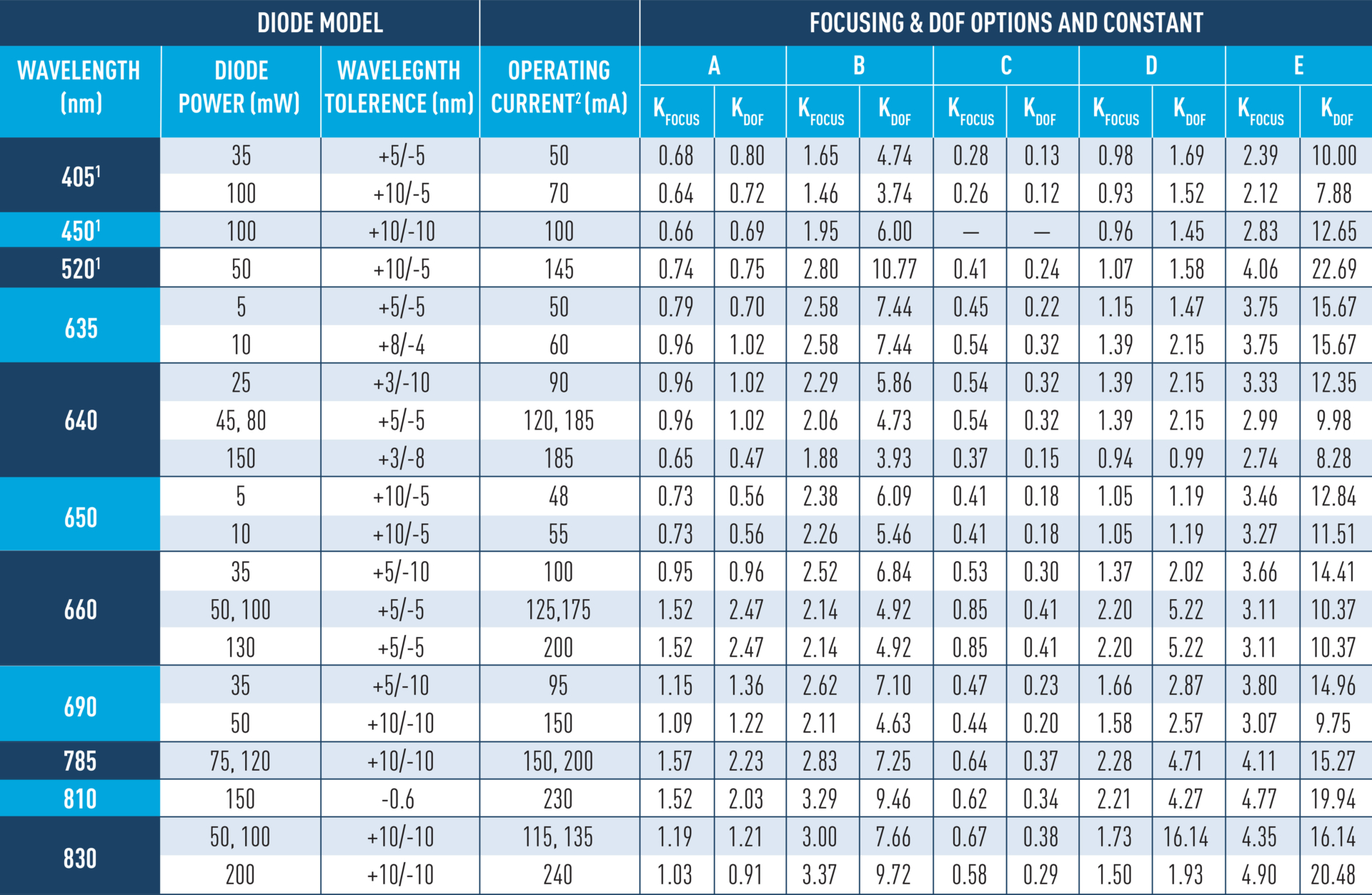

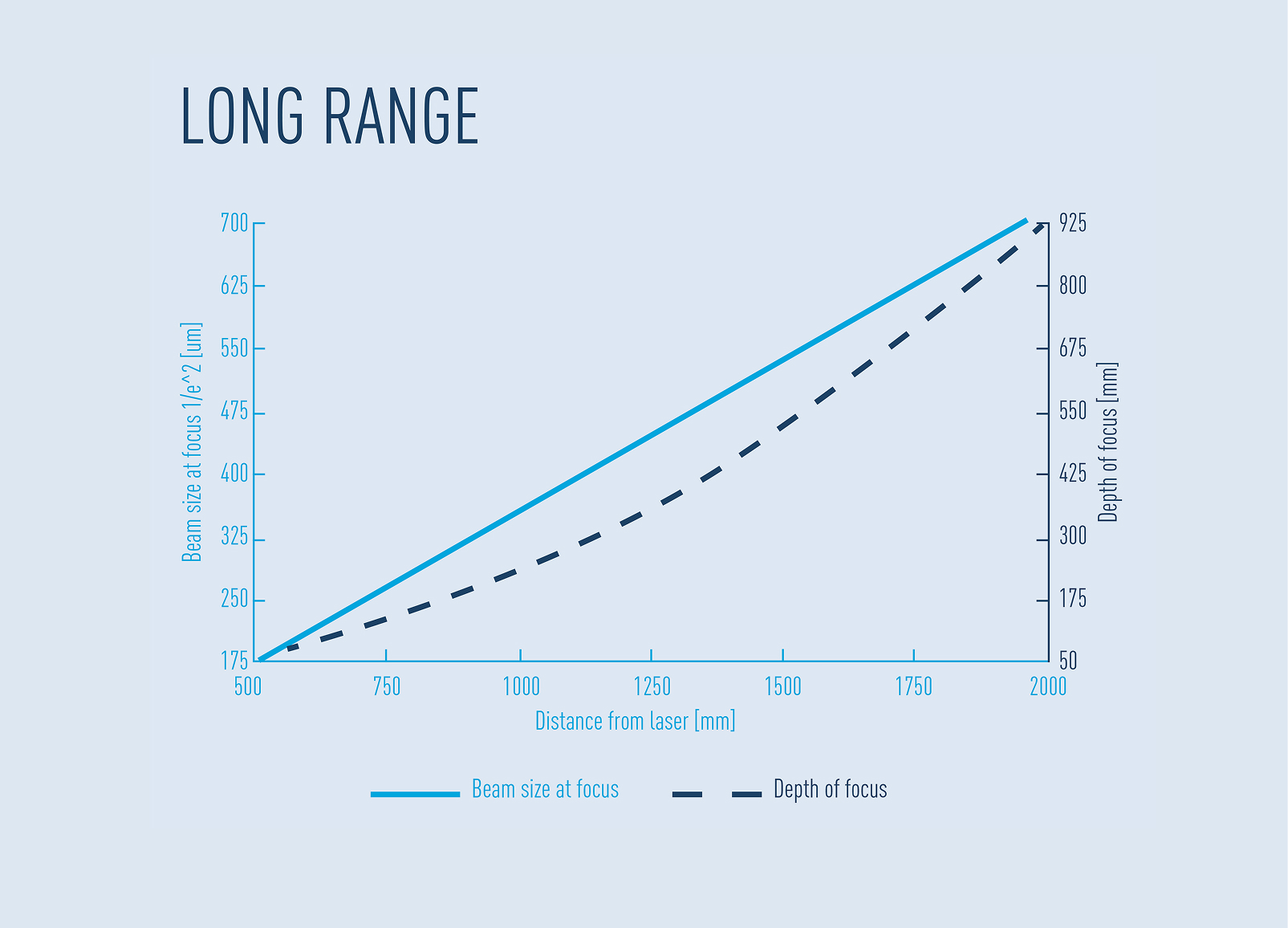

At Osela we provide many different focusing options giving you the flexibility to choose the one that best suits your application. The Streamline laser is free focusable externally without removing any optics. From the graphs below, note the beam size and Depth of Focus (DOF) values and then multiply by the K constants for the laser diode model and focus option of choice (A, B, C, D or E).
Example: From the graphs at 400 mm working distance, Focus = 140μm, DOF = 36 mm. Than for Laser Model 660 nm 130 mW the line thickness at focus for OPTION A
will be 212um (i.e.140 um x 1.52). Its depth of focus will be 88.92mm
(i.e. 36mm x 2.47)
We have developed simulation software that can be used to test each focus options performance in any condition (osela.solutions – contact us for access.)
Modulation

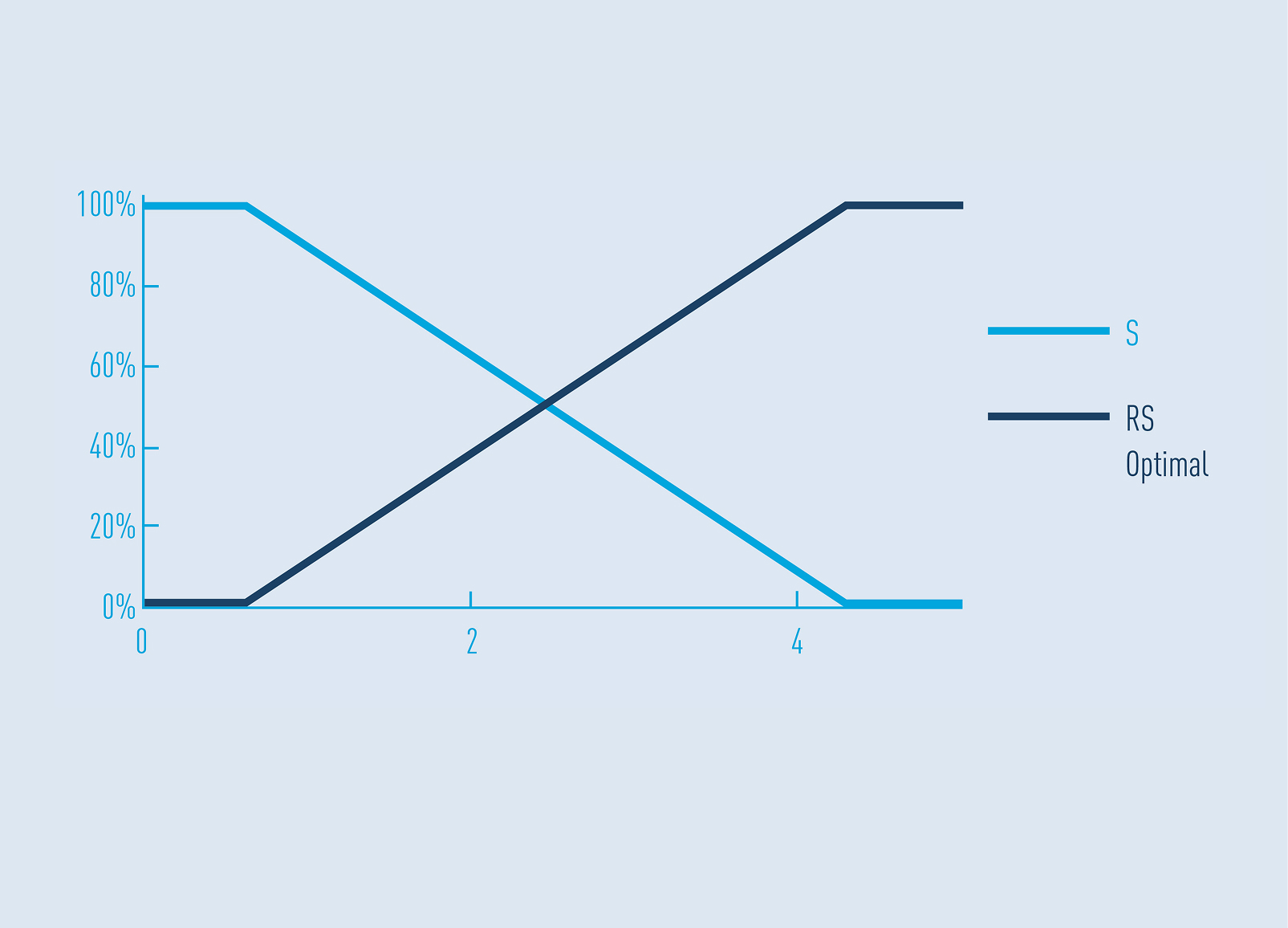

The Streamline laser can be modulated by an external 0 to 5V external signal
through the white wire. The S type modulation is included by default with the
Streamline Module.
| FUNCTION | CODE | ON | OFF |
|---|---|---|---|
| TTL | T | 0 to 2V | 3 to 5V |
| Reverse TTL | RT | 3 to 5V | 0 to 2V |

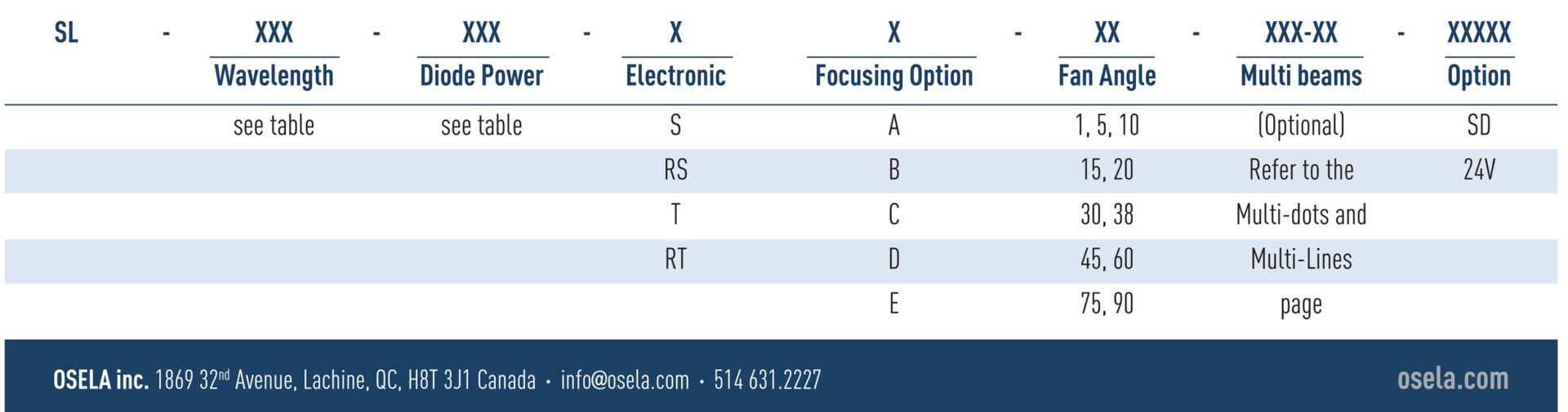

Note: One modulation input needs to be selected, S (default), RS, T or RT
