LASER SAFETY AND CERTIFICATION

In-house accredited self certification capabilities

Knowledge and Experience

Decades of experience in the laser industry as well as a profound knowledge of IEC 60825-1 norms have allowed us to become experts in laser safety optimization. This is a critical advantage for our customers as we are able to supply laser illumination with significantly higher output powers while maintaining a lower safety class than previously thought possible.

Knowledge and Experience

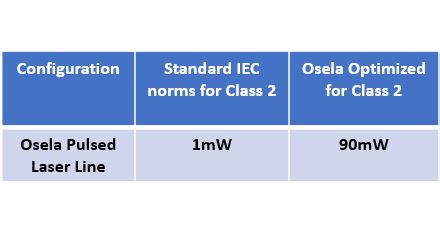

Table with standard laser output power for IEC 60825-1 Class 2 vs Osela Optimized Class 2
Click to enlarge

Beam Shaping Optimization

Osela laser pattern projectors be it a uniform laser line or more complex Random Pattern Matrix can be optimized to achieve peak power for a given safety class. Our in-house laser safety experts can evaluate system level classification and maximize laser performance accordingly.

Beam Shaping Optimization

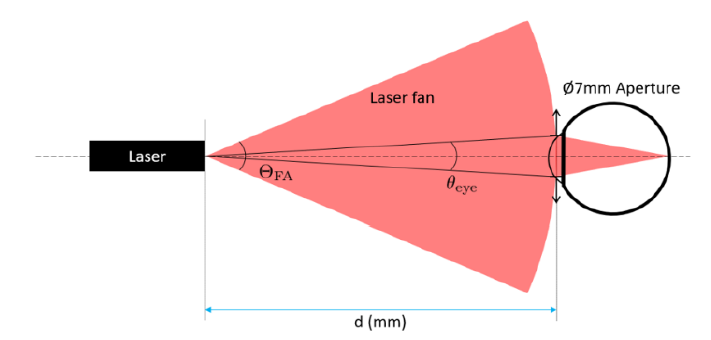

Graphical representation of laser classification parameters based on IEC 60825-1
Click to enlarge

C6 Factor

The C6 factor is an important component of IEC 60825-1 norm that can be exploited to optimize laser safety power for a given pattern. Osela’s laser safety experts are able to evaluate specific laser configurations to identify the C6 factor and apply it for significant power output gains for our customers. Optical power gains of more than five times are readily achieveable by considering this factor.

C6 Factor

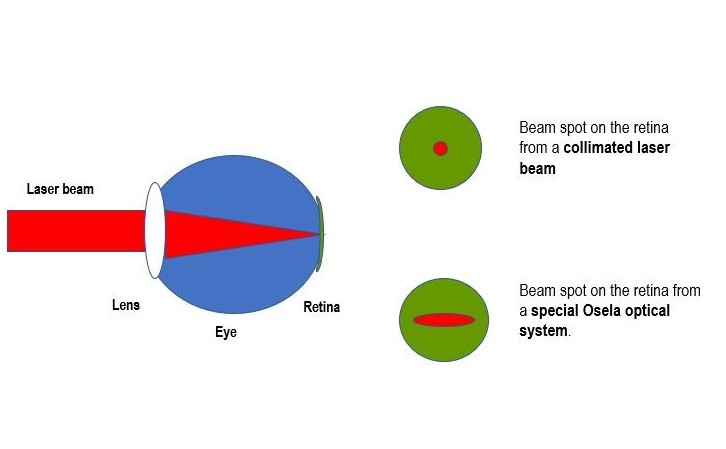

Optical power density reduction on retina based on astigmatism of laser beam
Click to enlarge

Pulse Factor

Most vision systems have short aquisition times. This allows for the laser illumination to be pulsed in sync during aquisition. With an analysis of specific operating conditions of the system in terms of laser ON time and OFF time, combined with extensive knowledge and application of IEC 60825-1 norm, a specific value of pulsed condition factor can be determined. The nominal output power for a given safety class can then be multiplied by this factor for significant output power gains.

Pulse Factor

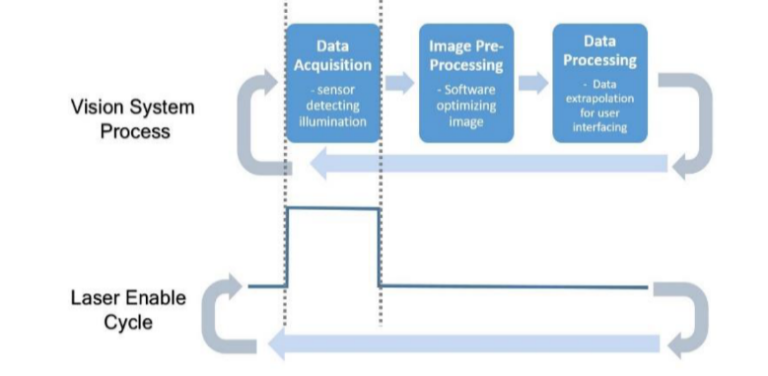

Syncing of laser with typical Machine Vision processing cycle’s Data Acquisition step
Click to enlarge

NOHD

Osela’s deep understanding of laser pattern projections has allowed us to become experts in Nominal Ocular Hazard Distance evaluation. We can support your certification process by determining NOHD values for specific Osela laser configurations and operational conditions.

NOHD

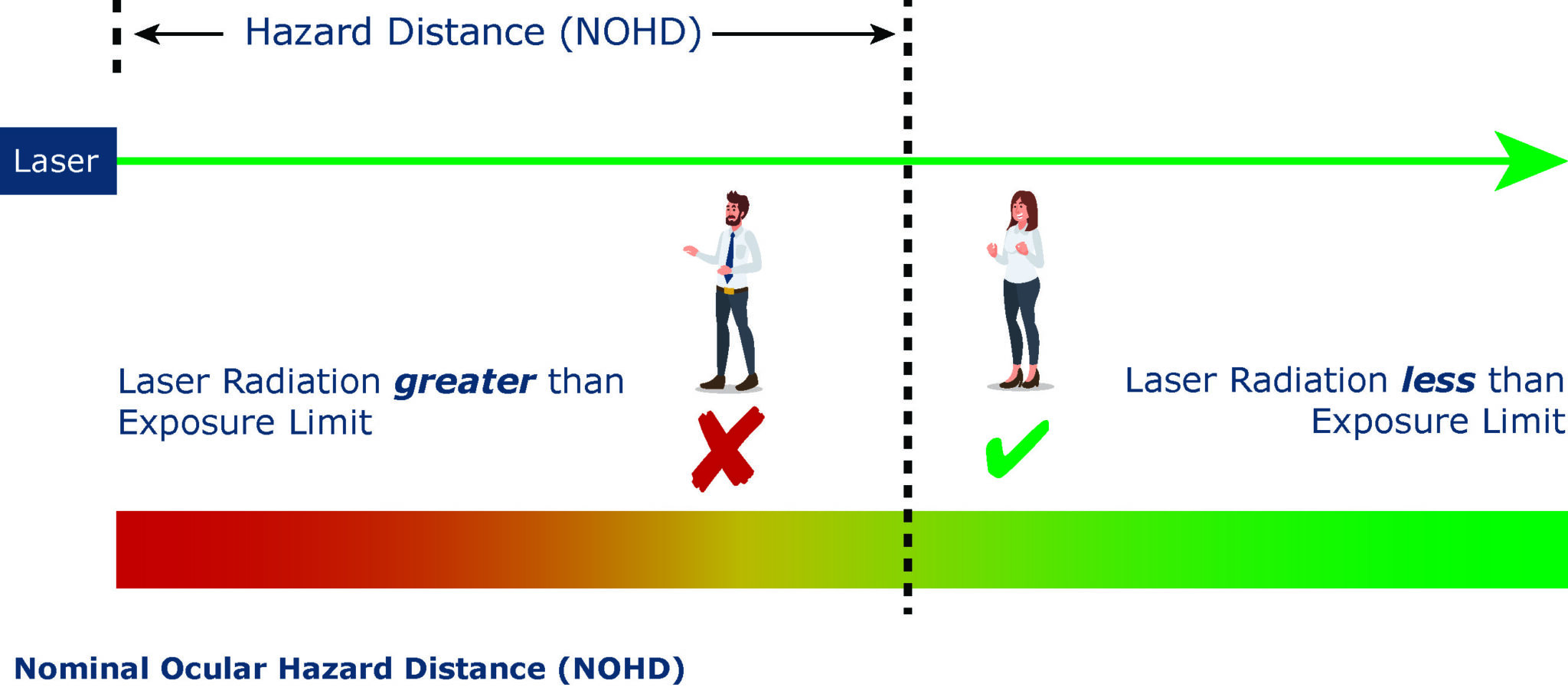

Nominal Ocular Hazard Distance diagram
Click to enlarge
